Adam Audio - D3V Black

Artnr: IDS0129138
Tarneaeg: Kaup on ajutiselt otsas. Kontakteeruge meiega tarneaja prognoosiks. »

Teave:

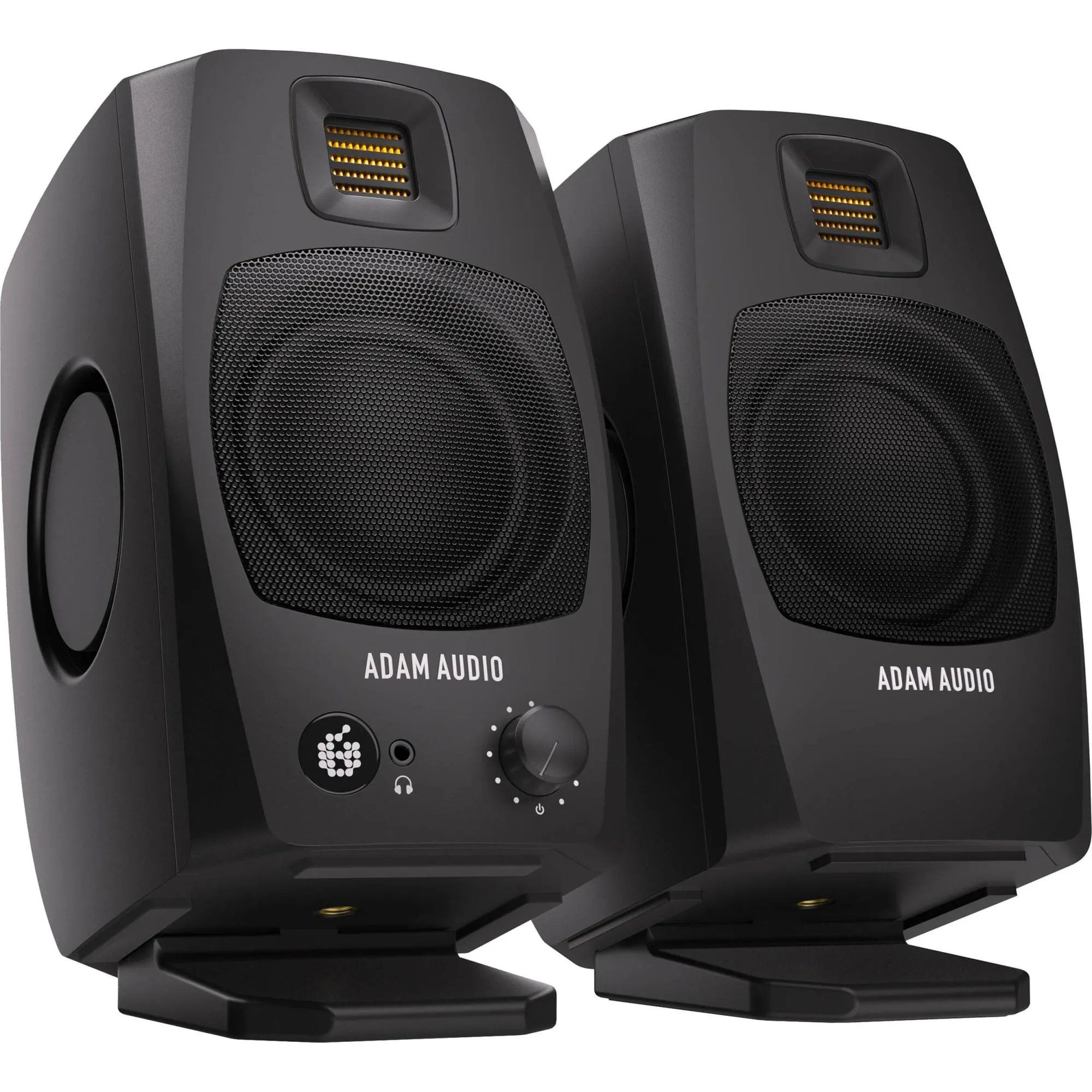

THE D3V
The D3V is a fully active desktop monitoring system that stays true to ADAM Audio’s industrial design heritage and features the iconic AMT tweeters. Each pair features 3.5” aluminum woofers and a ferrite magnet system, driven by an astonishing 240 W total system amplification. Dual-sided 3.5” passive radiators bolster bass frequencies and allow the D3V to extend down to 45 Hz.

Equipped with a USB-C input and two balanced TRS sockets, D3V offers high-quality digital and analogue connections. Streamlined controls include a multi-function volume knob, intuitive room compensation switches and a multi-color status indicator. The D3V comes complete with detachable monitor stands as well as in-built threaded mic stand mounting points for perfect positioning in any environment.

Available in black or white editions, the D3V’s finish can be chosen to match your taste and compliment your environment.

Features
Handmade Precision D-ART Tweeters
3.5'' Aluminum Woofers plus dual-sided 3.5" passive radiators
Total Peak Amp. Power: 240 W
Frequency Response @ -6 dB: 45 Hz – 23.2 kHz
Maximum SPL per speaker at 1 m: 92 dB SPL

Fully Active Aluminum 3.5" Woofers and Ferrite Magnet System
Optimized using ADAM Audio’s state-of-the-art Klippel measurement system, the extremely symmetrical voice coil and ferrite magnet system help minimize unwanted distortions and provide a linear motor for the woofer. Each one-piece concave cone is made of ridged, thick aluminum with a long linear excursion range, which delivers uncolored sound even at surprisingly high output levels.The D3V is a fully active design with four individual amplifier channels and DSP-managed crossover. The woofers are powered by 80W amplifiers with the link cable carrying an amplified signal to the right speaker.

D-ART Tweeter
A quarter century of ribbon tweeter research and development has led to the creation of ADAM Audio's highly capable 1.5" Desktop Accelerated Ribbon Tweeter (D-ART). Each diaphragm is handfolded and glued, with 40W amplifiers driving each unit. Like the rest of ADAM Audio's tweeters, the D-ART incorporates crossover fine-tuning, which is managed by highly accurate DSP.

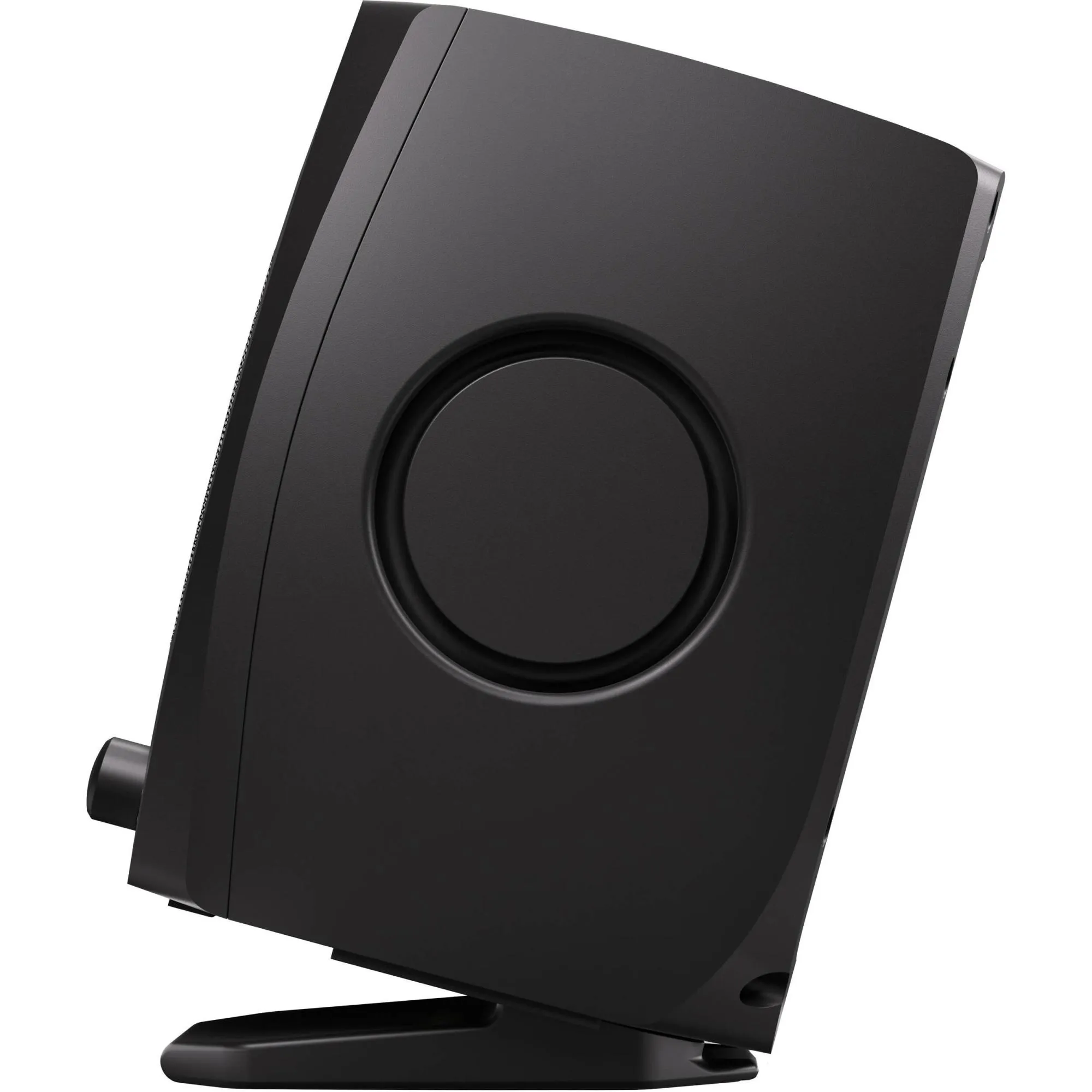

Passive Radiators
The D3V employs dual-sided passive radiators on each speaker for a total of four per system. Each radiator consists of a stainless-steel plate as the moving mass, and a specially stabilized long-stroke rubber surround for the suspension. Together they reinforce the lowest possible response of the loudspeaker through their interaction with the main woofers, as well as contributing toward the overall SPL of the system.

Direct USB-C Input
The D3V represents ADAM Audio's most convenient monitoring system thanks to the inclusion of a plug-and-play USB-C input. The loudspeakers behave as a digital output device when connected to a computer, mobile, or tablet, which negates the need for an additional audio interface. This direct digital connection facilitates high-quality audio playback without the compression or conversion normally associated with desktop monitors.

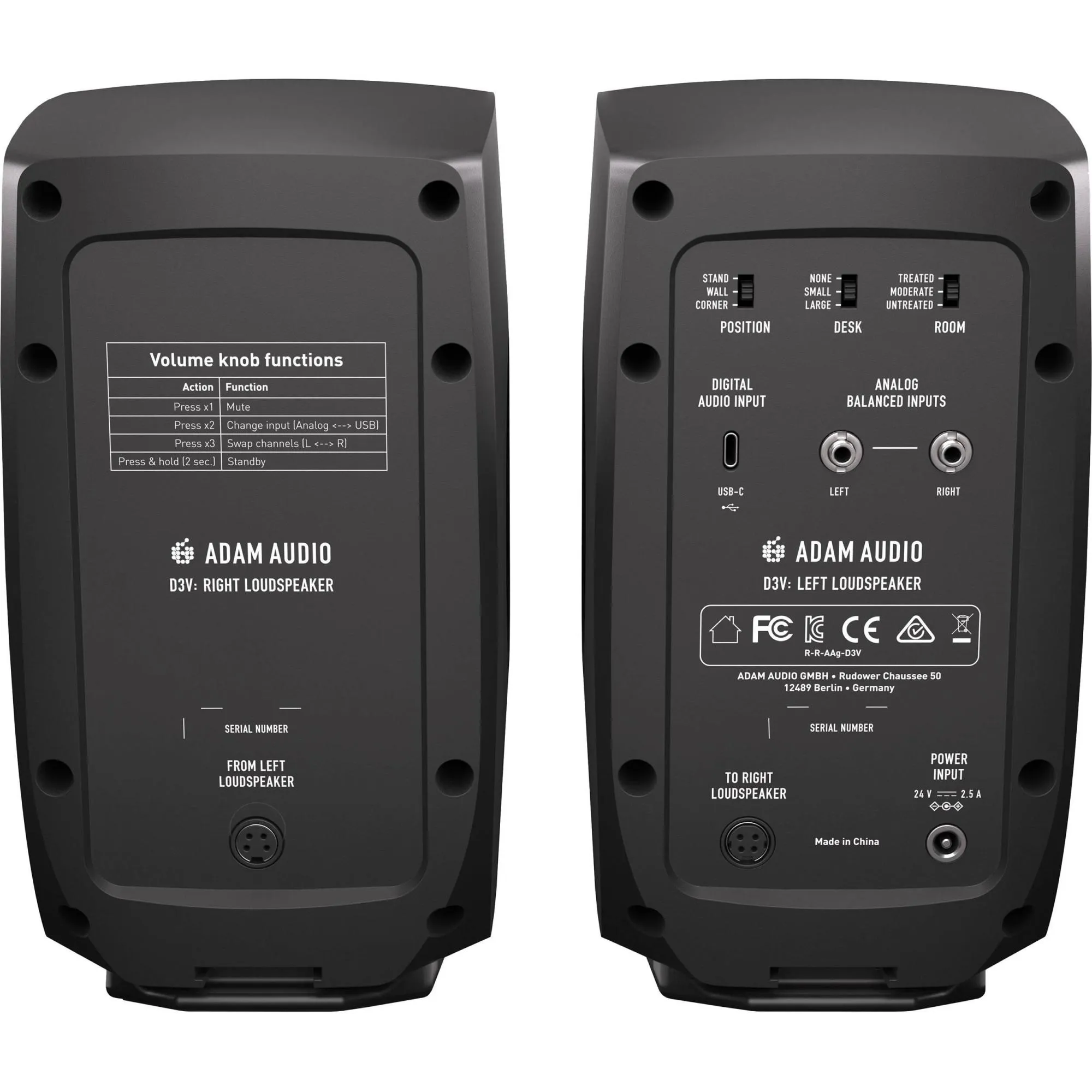

DSP Room Acoustics
On the backplate of the left speaker you can find three switches to counteract the typical acoustical issues that arise from speaker placement. Position refers to the fixed position of the loudspeaker in the room. Desk refers to the size of the desk in front of the loudspeaker. And Room refers to the amount of acoustic treatment in the space where the system is being used.

Balanced Analog Inputs
In addition to the USB-C input, the D3V features analog inputs for traditional audio applications. It allows for balanced connections to audio interfaces as well as direct connections to all kinds of hardware including synthesizers, drum machines, samplers, and DJ mixers. The USB-C or balanced analog inputs can be toggled by pressing the volume knob on the left speaker.

Headphone Output, Monitor Stands and Mounting Options

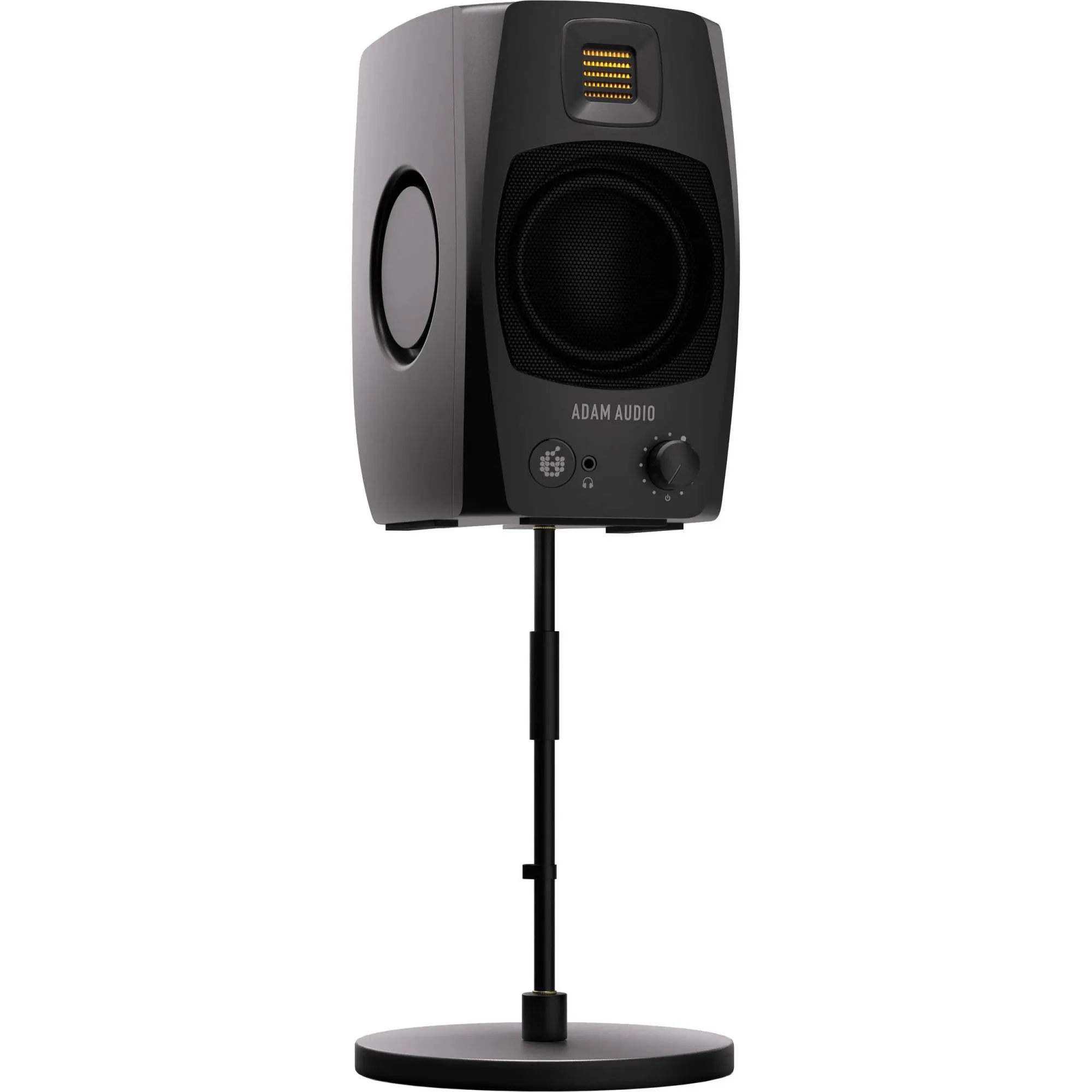

Functionality and convenience played a major role in the design of the D3V. The front-facing headphone output automatically takes over audio playback when connected, while detachable monitor stands angled at 15° are also included. Additionally, there is a standard threaded 3/8" hole for microphone stand mounting on the underside of both monitors.

Injection-Molded Cabinet
The D3V's cabinet is made of high-grade injection molded ABS Polycarbonate, with thick walls and plenty of bracing to avoid vibrations and unwanted resonances. The rounded shape reduces unwanted sound diffraction at high frequencies, while also paying tribute to ADAM Audio's long-standing industrial design heritage.

Specifications
Dual-Speaker Setup for Home/Workstation
3.5" Aluminum Woofers, Ferrite Magnets
Dual 80W Woofer Amplifiers
D-ART 1.5" Hand-Folded Tweeters
Dual 40W Tweeter Amplifiers
Dual-Sided Radiators for Extended Bass
45 Hz to 23.2 kHz Frequency Range
96 dB SPL Maximum Output Level
Analog 1/4" and Digital USB-C Inputs
Includes Detachable Stands
24.1 x 20.1 x 11.4 cm
Kaal 1.8 kg (Each)

In the box
Adam Professional Audio D3V Active Desktop Monitoring System (Black)
2 x D3V Angled Stand
6 x D3V Desktop Pad
Loudspeaker Link Cable (2 m)
USB-C to USB-C Cable (1 m)
USB-C to USB-A Adapter
PSU and Mains Power Cable
