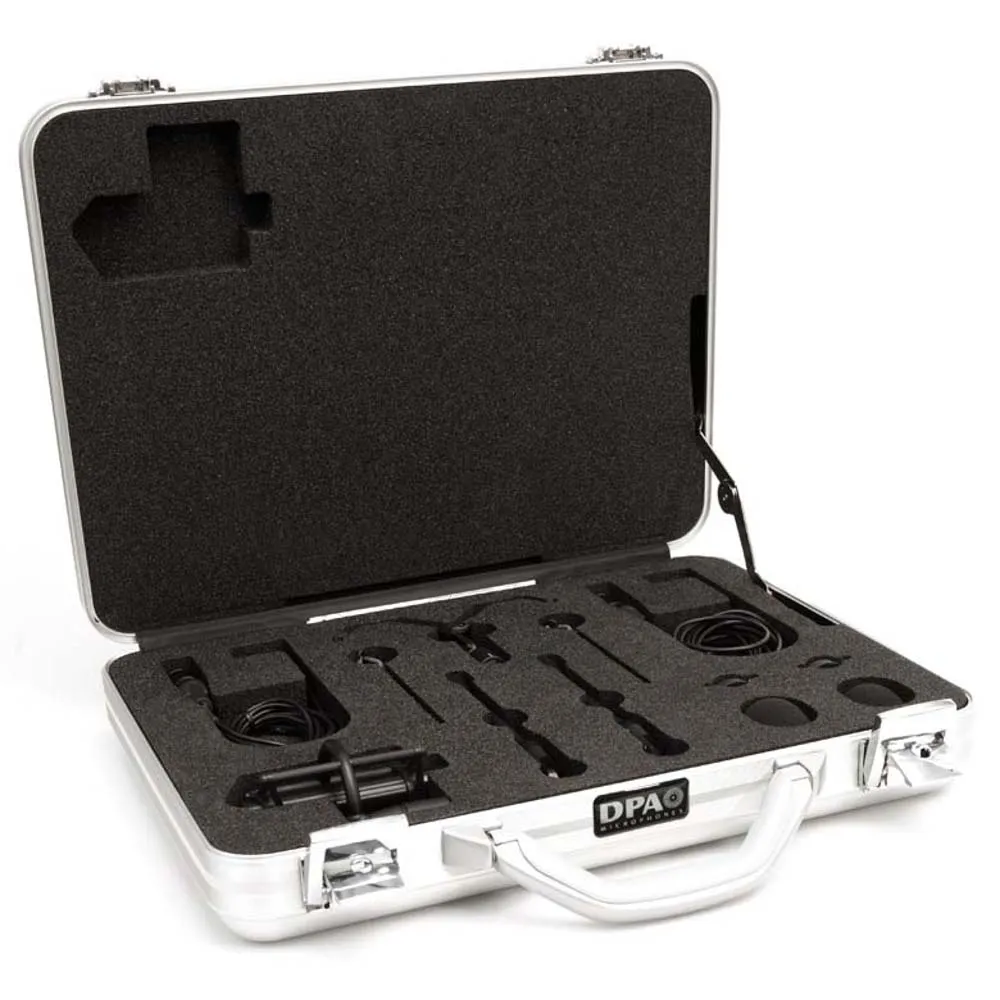

DPA 3511ES Stereo Kit w. 4011ES Cardioids, Active Side Cable

DPA - 3511ES Stereo Kit w. 4011ES Cardioids, Active Side Cable

Artnr: IDS0048076
Tarneaeg: Kaup on ajutiselt otsas. Kontakteeruge meiega tarneaja prognoosiks. »

DPA
4613.00 EUR/tk

Igakuine kuumakse alates 122.03 euro

Teave:

This is a complete stereo kit with two compact d:dicate™ 4011ES Cardioid Microphones, with active side cables. The mics are carefully factory-matched within ±1 dB on frequency response and sensitivity in the microphone’s entire frequency bandwidth.

Ideal for unobtrusive spot miking, such as hanging or table use, the d:dicate™ 4011ES Cardioid Microphone, Active Cable is an ultra-compact cardioid microphone from the modular d:dicate™ Microphones Series. The mic has a length of only 3.5 cm (1.4 in) and a low-key appearance.

The mic features an integrated cable solution. This allows it to be hung from the ceiling and create precise and repeatable positions and angles when spot miking orchestra sections or ambience atmospheres.


The microphone capsule

The principal appeal of the MMC4011 Cardioid Microphone Capsule is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.

It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone.

A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.


A truly flexible range

This mic is part of the flexible d:dicate™ Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate™ 4011ER/ES Omnidirectional Microphone into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.



Specifications

d:dicate™ 3511ES STEREO KIT W. 4011ES CARDIOIDS, ACTIVE SIDE CABLE

Directional pattern
Cardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Frequency range
20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in)
40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz
10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 25 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL)
Typ. 76 dB(A)
Total harmonic distortion (THD)
< 1% up to 139 dB SPL peak
Dynamic range
Typ. 121 dB
Max. SPL, peak before clipping
144 dB
Output impedance
100 Ω
Minimum load impedance
2 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power (± 4 V)
Current consumption
3.5 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color
Matte black
Weight
109 g (3.8 oz)
Microphone diameter
19 mm (0.75 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
35 mm (1.38 in)
Maximum output voltage, RMS
2.2 V
Polarity
+V at pin 2 for positive sound pressure
Temperature range
-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)
Up to 90%
Matching tolerance (frequency response and sensitivity)
±1 dB
Phase deviation for kit
< 10°


Features

The product offers the following features
Close-miking
Great for high sound levels
Factory-matched pair within ±1 dB
Accurate sound
Colorless sound
Modular flexibility
