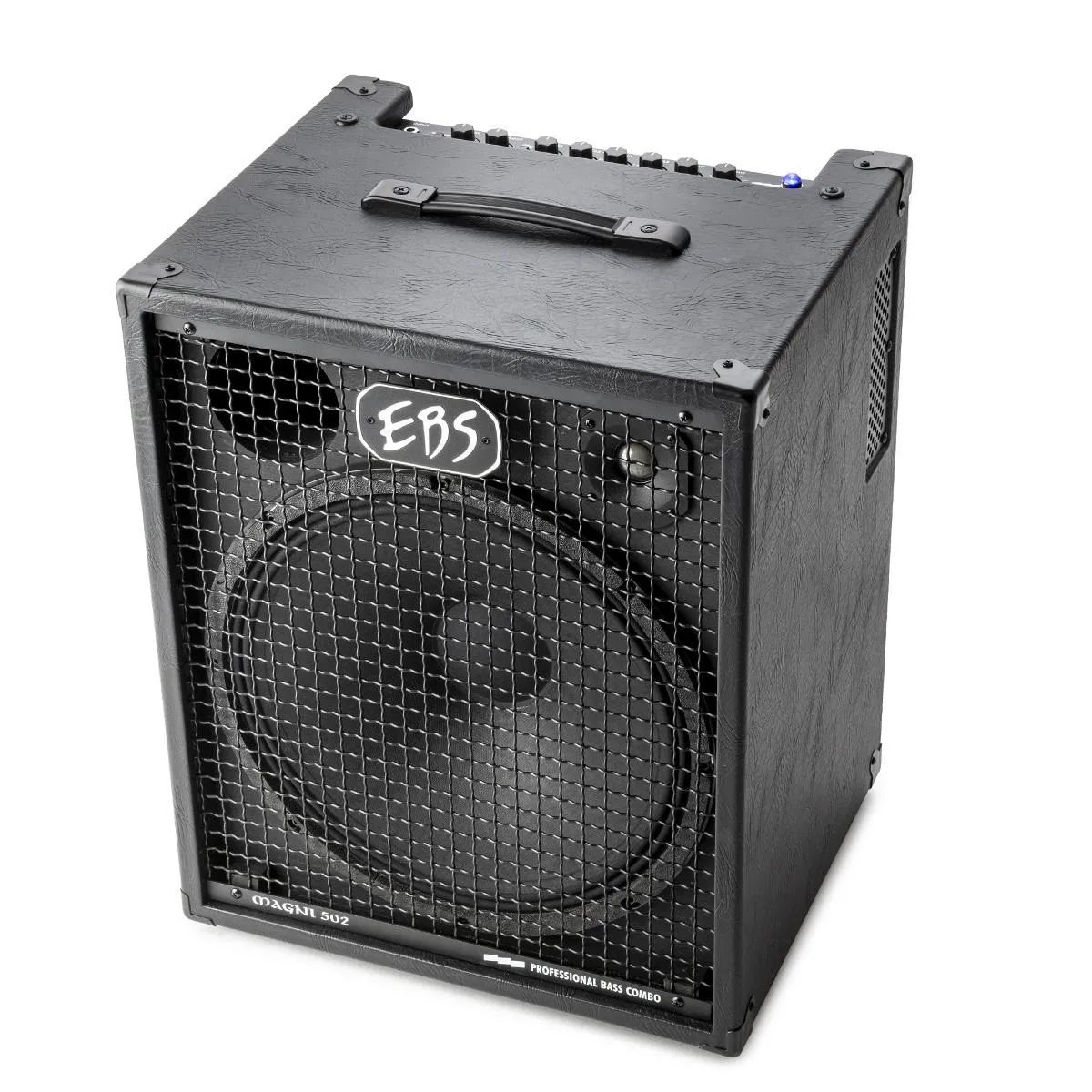

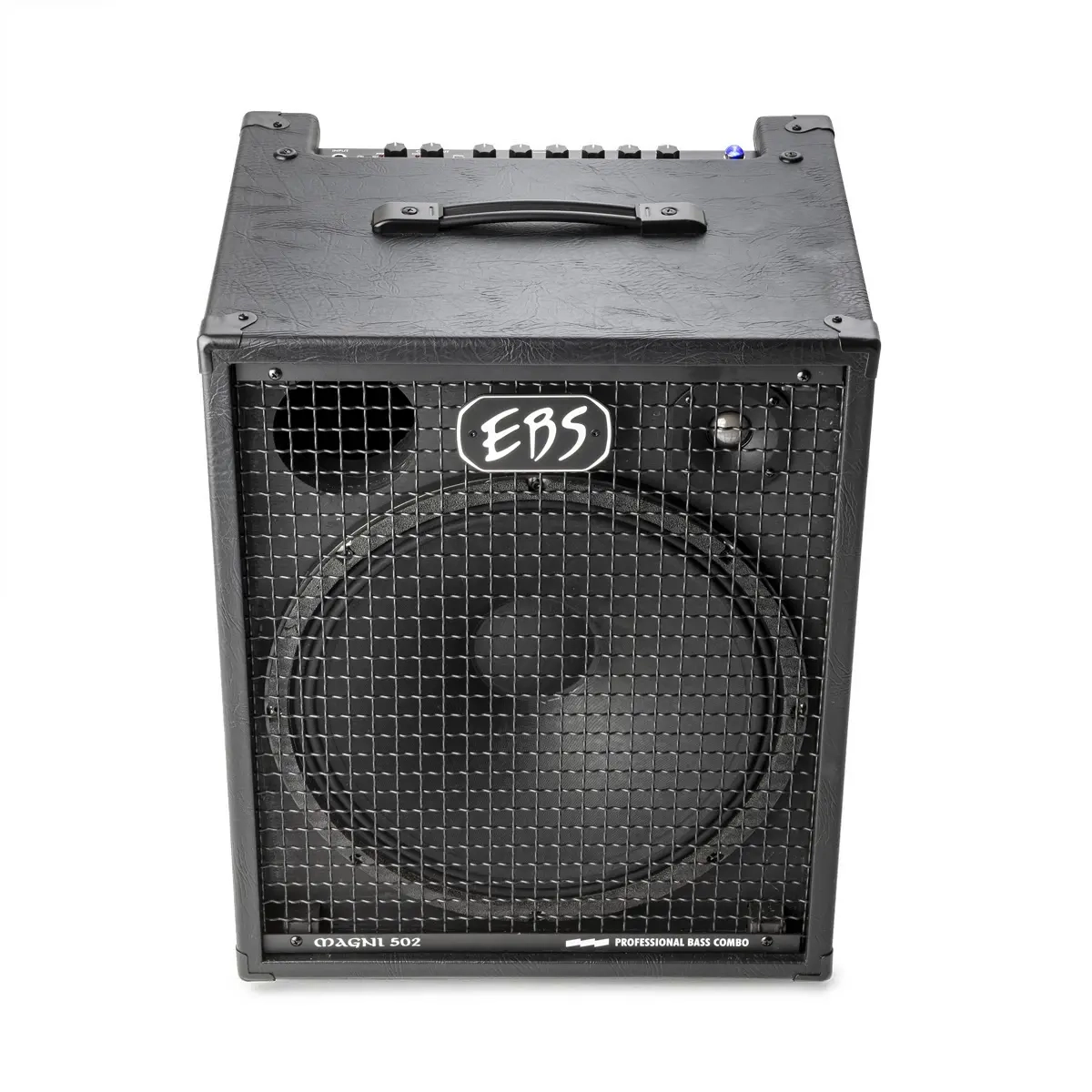

EBS Magni 502 115 Bass Combo

EBS Magni 502 115 Bass Combo EBS Magni 502 115 Bass Combo EBS Magni 502 115 Bass Combo

EBS - Magni 502 115 Bass Combo

Artnr: IDS0127445
Tarneaeg: 2-7 tööpäeva.

EBS
1330.00 EUR/tk

Igakuine kuumakse alates 43.51 euro

Teave:

Lightweight beyond this world
The choices of materials in conjunction with neodymium speakers make the EBS Magni 502 one of the lightest bass combos in its class (only 15.4 kg for the 210-model, 16.5 kg for the 115!). But don't worry - the sound is anything but lightweight.

Let the sound out of the box
With the innovative porting of the cabinet both on the front and back, the compact cabinet delivers more output and low-end bass than you would imagine judging by the appearance. The double-porting helps distribute the sound evenly for a multi-dimensional sound experience that uses the room itself to support and distribute the sound. Still, the tone is solid, punchy, and tight due to the amp's use of EBS-developed soft clip technology and the highly efficient Neodymium speakers.

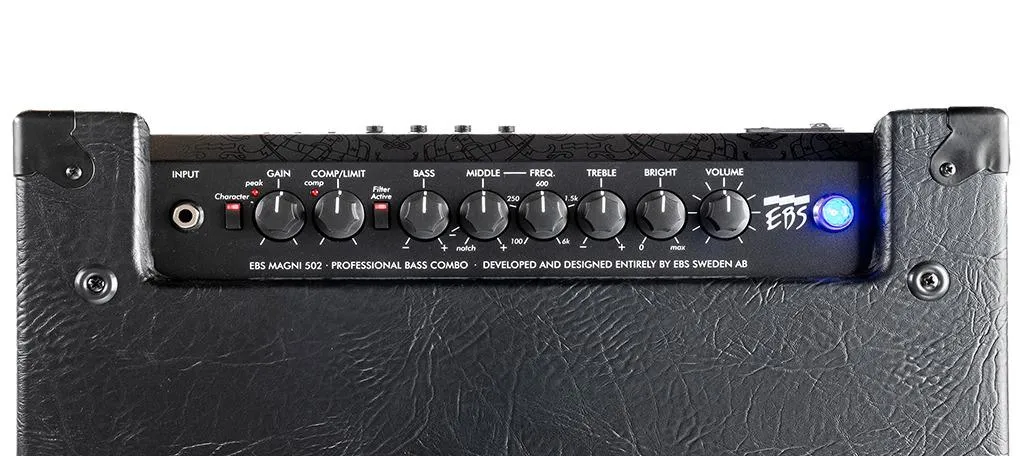

Filters and features that make a difference
The amplifier is similar to the EBS Reidmar 502, which means an analog preamp with powerful filters to shape the sound and a 500 W power module developed by EBS with the possibility to hook up an extra cabinet at 4 or 8 ohms if ever needed. You can also use the high-quality XLR output for a balanced line signal from the amp to the FOH mixer without needing an external line box.

Magnificient upgrades since the previous Magni 500 series:
Reduced weight by 6 kg!
Neodymium speakers with improved frequency response, power, and punch.
The power amp, developed by EBS, operates at 4 ohms and can handle a 2-ohms load. It makes it possible to extend the combo with one 4-ohm or up to two extra 8-ohm speaker cabinets.
Better suited for the road due to a new hard vinyl coating.
The woven steel grill contributes to the lesser weight and provides improved airflow.

Specifications
EBS Magni 502 - 210 & 115 models
Input Impedance: 1 Mohms // 100 pF
Character Filter:
Low +7 dB @ 40 Hz
Mid -2dB@ 800Hz
High +3 dB @ 10 kHz
Comp/limit:
Gain 0 dB
Attenuation max 24 dB
Compression Ratio max 3:1
Attack (80%) typ. Release (80%) typ. 100 ms
Bass Filter:
Type 12 dB/oct. Shelving
Gain Range +/-18dB @ 60Hz
Middle Filter:
Type Bandpass Filter
Frequency Range 100 -6.000 Hz
Gain Range +/-12-15 dB
Treble Filter:
Type Shelving
Gain Range +/-18dB@6kHz
Bright: Type Shelving
Gain Range +15/-0 dB @ 10 kHz

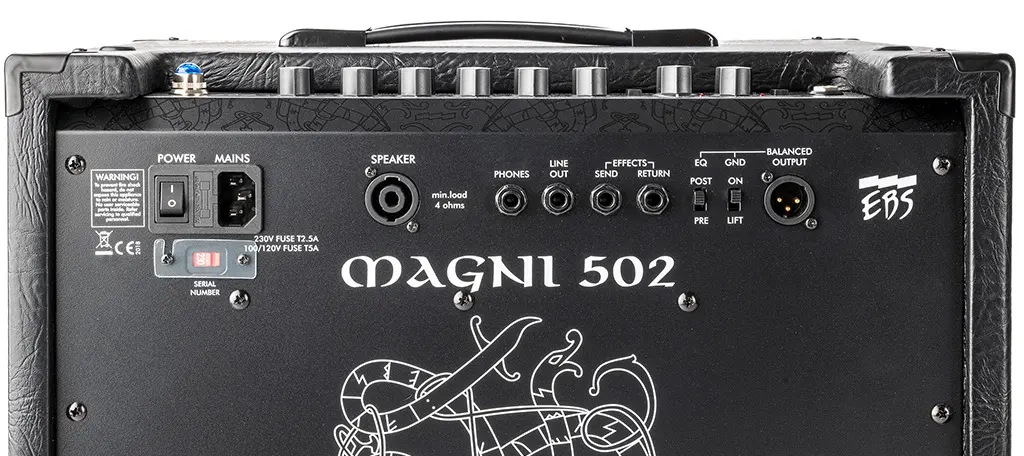

Balanced XLR output:
Output Level Nominal -10dBv
Frequency Response +0/-3 dB 10-20.000 Hz
XLR Connections 1-GND, 2-Hot, 3-Cold
Options GND Lift, Pre/Post EQ
Effect Loop:
Loop Signal Level nominal -10 dBv
Gain Unity (1:1)
Output Impedance 100 ohms
Input Impedance >50 Kohms // 100 pF
Line out:
Output Impedance 100 ohms
Signal Level nominal 0 dBv
Phones out:
Impedance recommended 32 -200 ohms
Power amp:
500 W
External cabinet output:
The minimum Load Impedance of an external cabinet is 4 ohms
Connect via Speakon output jack.
Auxiliary output:
Power Requirements max 500 W
Mains Protection: T2.5A Fuse (230V) T5A Fuse (100/120V)

Magni 502 - 115:
Configuration: 1x 15" Neodymium Speaker + tweeter
Frequency Response: 30 - 20k Hz
Size: (H x W x D) 56 cm / 44 cm / 36.5 cm
Weight (total): 16.5 kg
