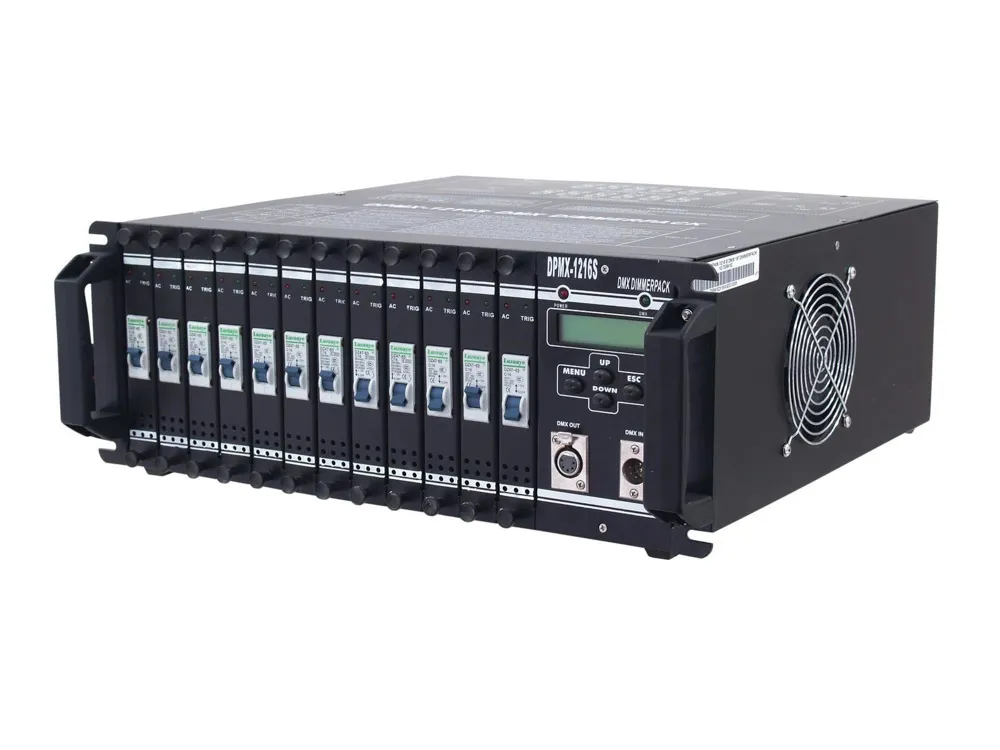

Eurolite - DPMX-1216 S DMX Dimmer Pack

Artnr: IDS0097476
Tarneaeg: 10-30 tööpäeva.

Teave:

12-channel dimmer pack with up to 16 A output per channel
Modular design of the individual dimmer modules for quick and easy change
3-phase or 1-phase power supply
DMX512 control or analog control
Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
Curve function for selection of different fade modes
Dim or switch option assignable to each channel
DMX Fail function: automatic digital input check to detect DMX signal errors
12 built-in programs with adjustable speed
Manual mode for dimming capability without an external lighting controller
All modes are displayed via LCD
Synchronization of several devices possible via DMX
Automatic circuit breaker per channel (type C)
Channel outputs on the rear panel via safety sockets
Rack installation with 4 U
Only for professional use
Preprogrammed 12 chasers
Can be operated in 12 CH mode
Controling by Analog 0-10 V; Stand-alone; DMX
(19") 48.3 cm rack installation 4 U
TECHNICAL SPECIFICATIONS
Power supply: 230/380 V AC, 50 Hz
Output power: Max. 43470 W
Max. 3680 W each chanal
Power connection: Mains input screw terminal
Power output: 12 x Safety contact (F), hinged lid mounting version
Fuse: Power output fuse per channel C 16 A Fuse resettable
Programs: Preprogrammed 12 Chasers
DMX channels: 12
DMX input: 1 x 3-pin XLR (M) mounting version
DMX output: 1 x 3-pin XLR (F) mounting version
Control: Analog 0-10 V
Stand-alone
DMX
Control channels: 12
Color: Black
Housing design: (19") 48.3 cm rack installation 4 U
Width: 48.3 cm
Height: 17.8 cm
Depth: 52.0 cm
Weight: 18.70 kg
