HK Audio - L5MKII-112XA

Artnr: IDS0120318
Tarneaeg: 2-7 tööpäeva.

Teave:

Max. SPL @ 10 % THD 128 dB half space (70 Hz – 12 kHz averaged)
Max. SPL Peak @ 10 % THD 136 dB half space
Frequency response +/-3 dB 73 Hz – 12 kHz
Frequency response -10 dB 67 Hz – 19 kHz
Power amp output (RMS/Peak) 600 / 1,200 W
Amplifier type Class D – bi-amped
Low/mid speaker 1 x 12", 2.5" voice coil
HF driver 1", 1.7" voice coil
Horn characteristics 80° x 60° CD horn, rotatable
Active x-over frequency 1.9 kHz FIR X-over with 72 dB/oct.
Maximum input level 20 dBu

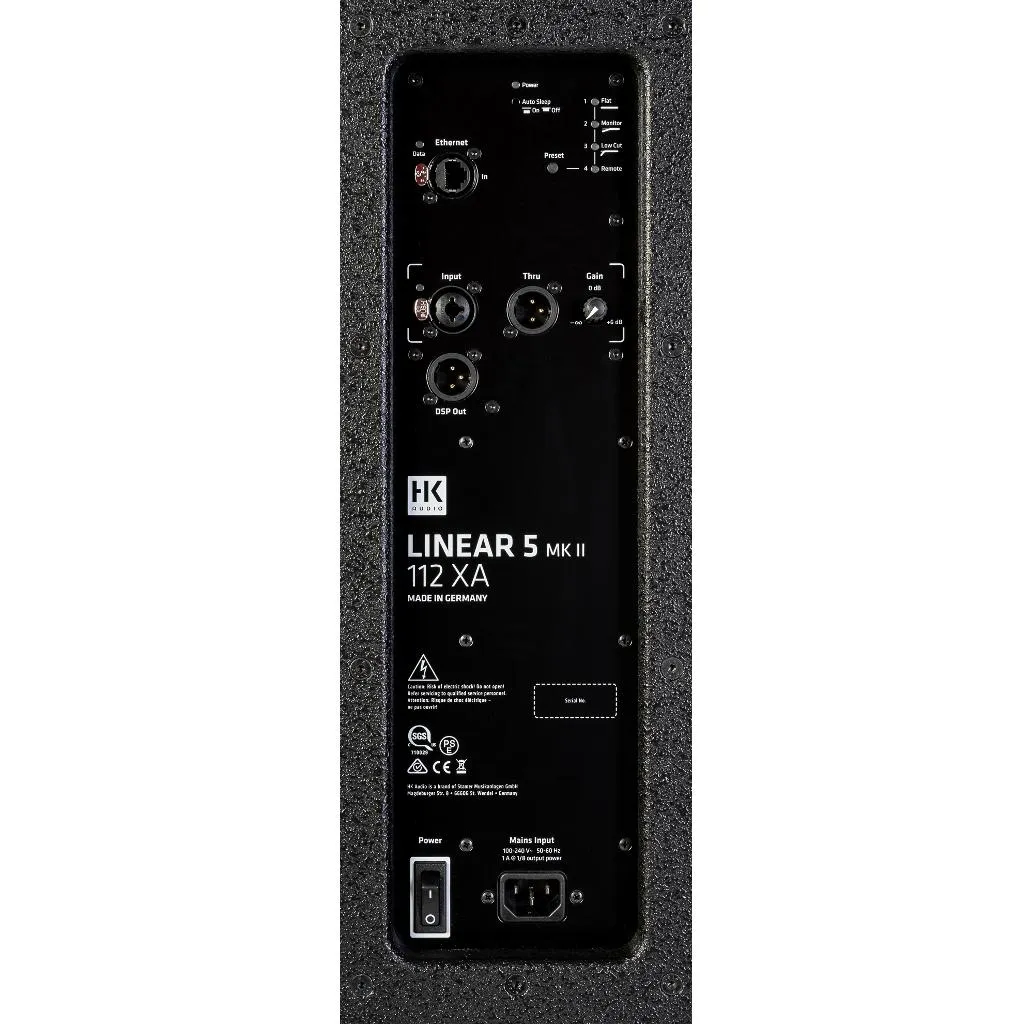

Analogue inputs 1 x XLR combo balanced
Analogue Thru 1 x XLR balanced
DSP Out 1 x XLR balanced
Network port EtherCON RJ45, 1 x In
Filter presets Flat, Monitor, Low Cut, Remote
Remote software DSP CONTROL (Windows, Mac OS)
DSP functions Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
Sample rate 48 kHz
System latency Less than 2 ms
Mains connection 1x IEC connector with V-Lock securing system, 100-240 V
Power consumption 1 A / 100–240 V nominal according to EN 62368-1
Setup angle 31°
Pole mount DuoTilt 3°/7°
Rigging points 3x M8 (AP-8)
Carrying handles 2 x SingleGrip
Housing Hybrid (birch multiplex/MDF)
Surface Black acrylic enamel
Front grille 2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD) 36 x 59 x 30.5 cm
Weight 17.6 kg
