LD Systems - Anny 8 BPH B5 GN

Artnr: IDS0130087
Tarneaeg: 6-14 tööpäeva.

Teave:

Battery-powered PA speaker
Type

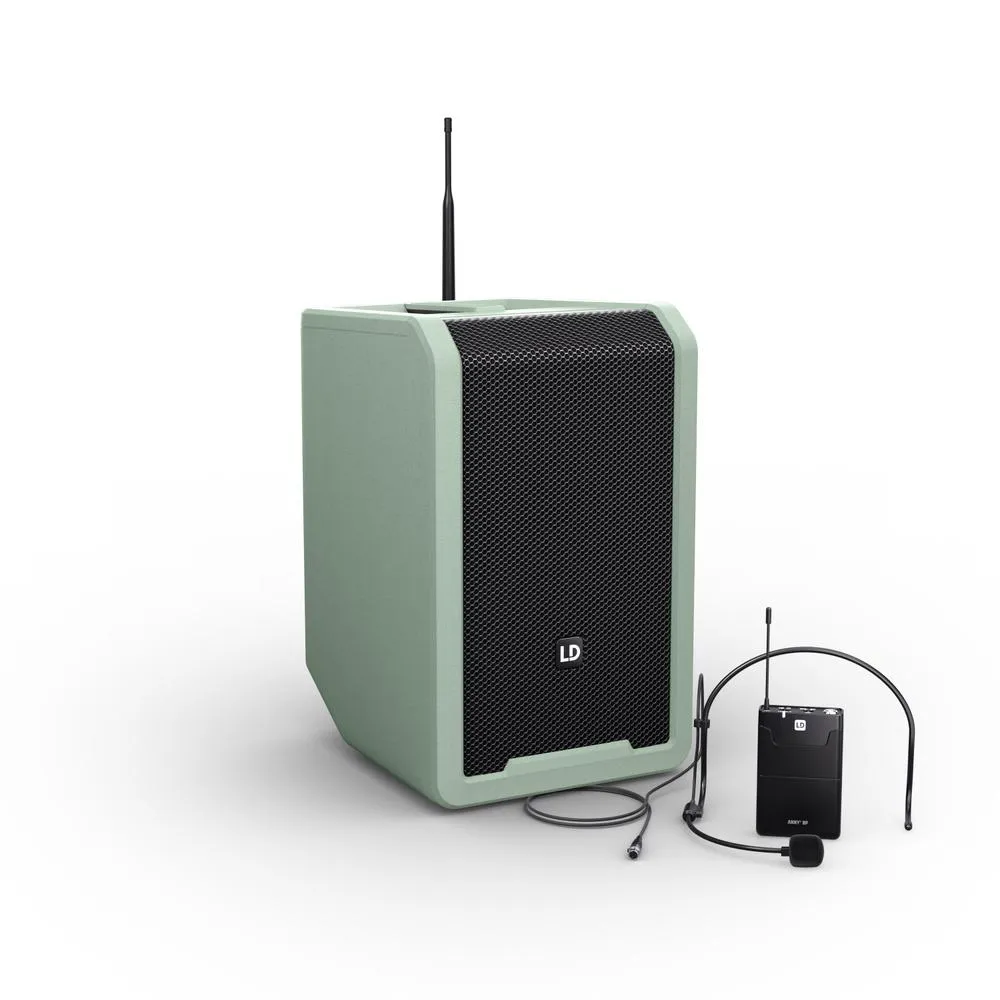

Set (1x ANNY 8, 1x receiver, 1x bodypack, 1x headset)
Frequency range
584 - 608 MHz
Weight
9,175 kg

Portable battery-powered Bluetooth® PA loudspeaker with mixer and 1x headset microphone.
8" Portable active 2-way full-range loudspeaker
Built-in 5-channel mixer with 3-band EQ, reverb and delay
Long battery life: up to 11h (ECO mode) / 3.5h (max. volume)
1x headset microphone with bodypack transmitter incl. AA batteries
Bluetooth® 5.0 and stereo streaming (TWS) with two ANNYs
Clear and distortion-free sound at maximum volume through DynX® DSP (Gen. 2)
2x microphone/line inputs for versatile connection options
1x stereo channel with 3.5mm jack (AUX) or Cinch
Priority/ducking mode to emphasise the microphone signal
Tilt-Back cabinet for optimum sound dispersion
35-mm flange for use with a speaker stand
USB-C port for charging a tablet or smartphone
Footswitch input for hands-free effect control
Integrated holder for tablet or smartphone

Description
ANNY – your battery-powered sound solution for truly anywhere: whether in the city, in the garden, at gatherings, at sports events, at school and dance events, in bars, at parties, wherever you are, with ANNY you can provide professional sound and create unforgettable moments.

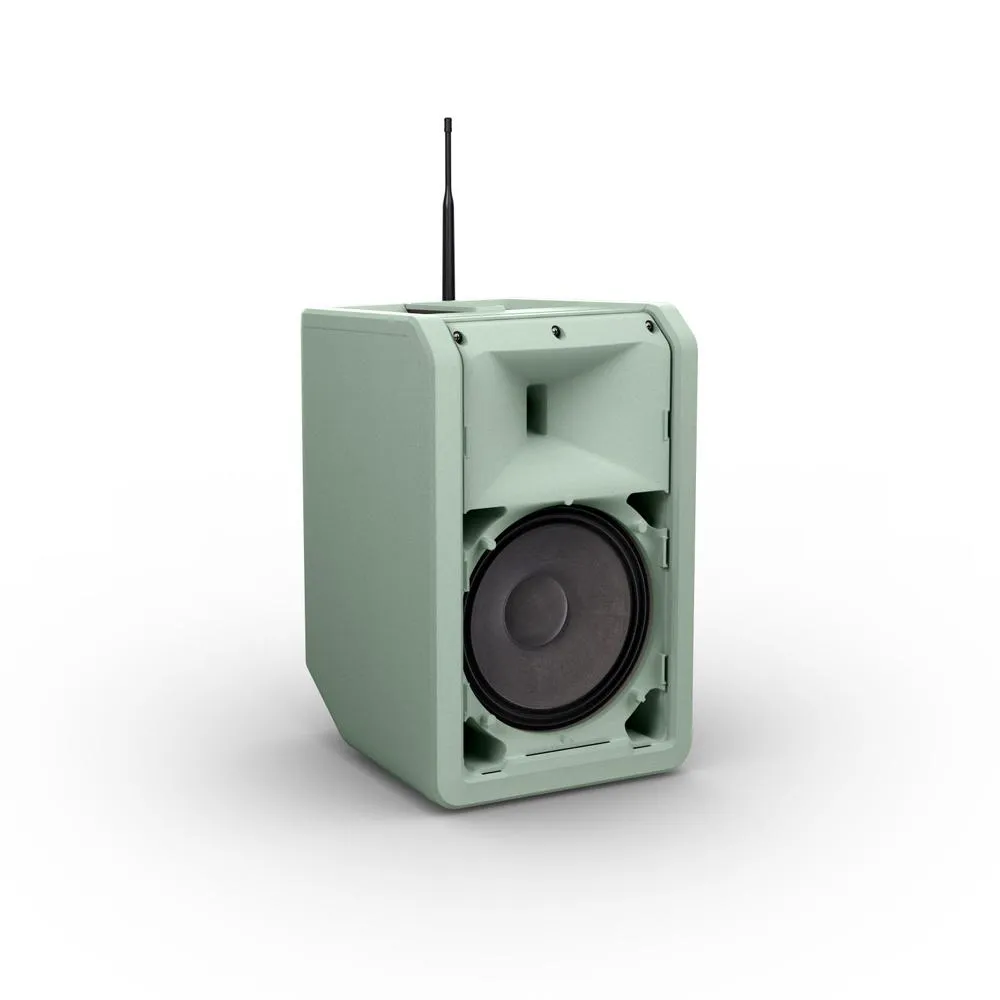

As the lightest and most compact model in the ANNY® series, the ANNY® 8 is equipped with an 8" woofer and a 1" tweeter. Thanks to its balanced weight and practical carrying handle, it is easy to transport. ANNY® 8 thus offers an ideal combination of compactness, mobility, and impressive sound performance.

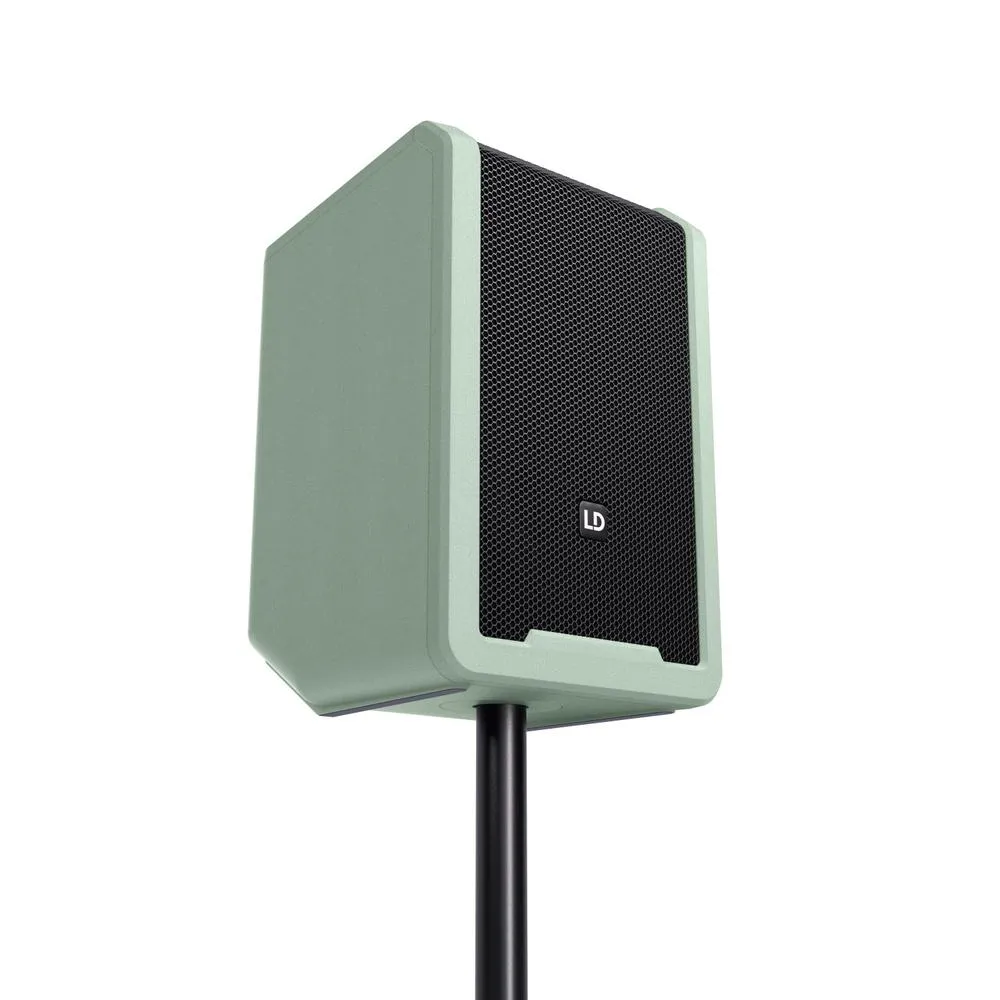

The Tilt-Back cabinet allows you to tilt your ANNY® 8 when it's on the ground, optimizing sound dispersion or using it as a monitor. To reach a larger audience, the ANNY® 8 can also be mounted on a speaker stand.

With an integrated 5-channel mixer, 3-band EQ, 5 application presets (MUSIC, LIVE, VOCAL, ECO, FLAT) and effects such as reverb & delay, it combines comprehensive features and outstanding sound quality in a compact and timeless design. ANNY® 8 impresses with its versatile connection options: two microphone/line combo inputs, one stereo channel with 3.5mm jack (AUX) and RCA inputs as well as Bluetooth 5.0 with AAC codec.

This array of inputs enables a wide range of setups with a mix of speech and music. The footswitch input allows you to switch the reverb & delay effects easily and hands-free with an external footswitch while playing or singing.

To guarantee clear and audible announcements in any situation, you can use the "Priority" function. To do this, simply select your microphone in the priority settings and the music will automatically be attenuated when you use your microphone.

The ANNY® 8 HHD variant is already equipped with a wireless microphone – simply insert the included AA batteries and you're ready to go. The volume can be adjusted separately on the corresponding receiver module on the back of the ANNY. This expands your connection options by an additional input channel, giving you even more combination options.

Further adding to its versatility, True Wireless Stereo (TWS) allows you to link two ANNY® 8 loudspeakers to enjoy your music in stereo – a quick upgrade that creates an impressive sound solution for parties and events.

Don't worry, you can turn your ANNY up all the way, because the built-in DynX® DSP (Gen. 2) produces a distortion-free, clean and powerful sound even at maximum volume.

Thanks to the energy-saving ECO preset, ANNY can last especially long for background music or voice-only applications. At medium volume, this mode enables continuous operation for up to 11 hours. For your party at maximum volume in MUSIC preset, the battery lasts up to an impressive 3.5 hours at full capacity. You can further extend the operating time using the optionally available backup battery; simply replace the empty battery with fully charged one and you're ready to continue.

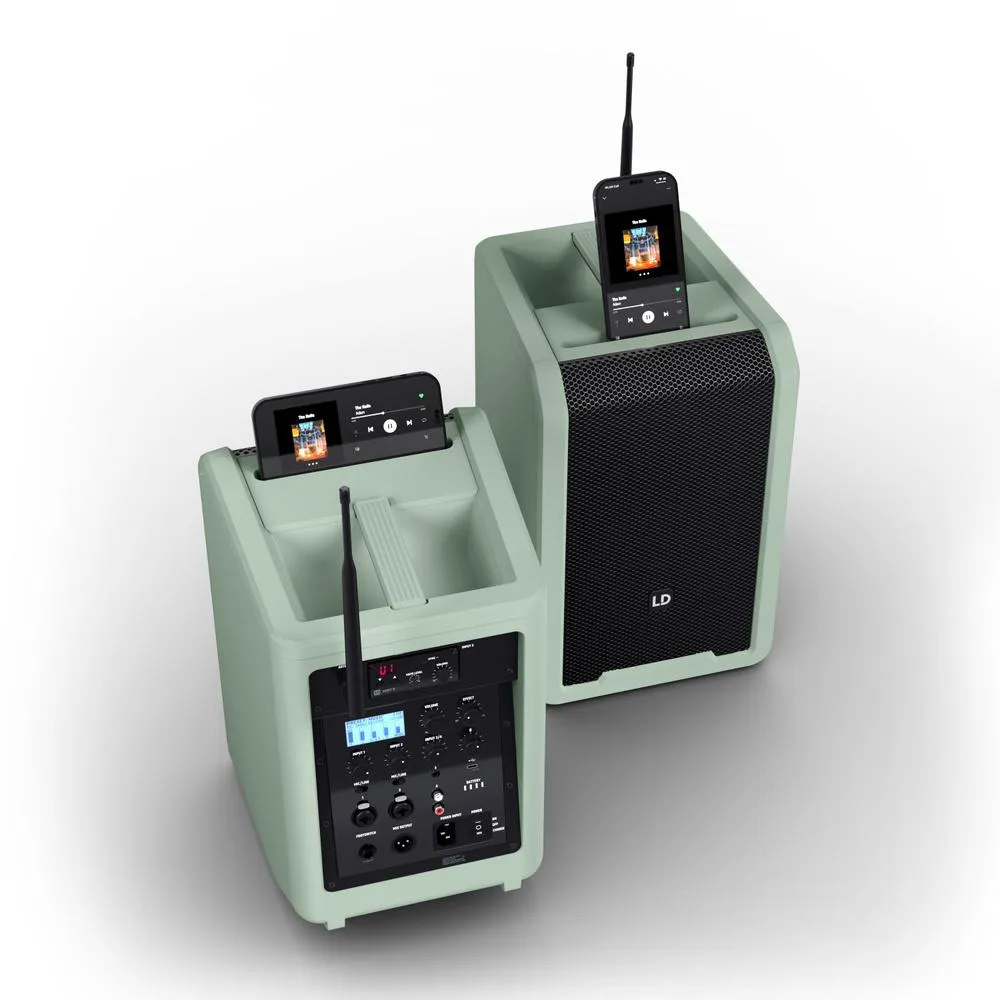

To ensure that your mobile phone or tablet is always ready for use, you can place it in the integrated holder and charge it via the USB-C port on the back of ANNY.

If you travel a lot with your ANNY® 8, you'll appreciate the optional ANNY® 8 BACKPACK as the ideal protective backpack with versatile carrying options: Shoulder strap, backpack straps and carry handle. The water-repellent backpack offers extra storage space and protects your ANNY® 8 from the elements.

So go ahead and create unforgettable moments. With ANNY by your side, you'll create a great atmosphere and first-class sound – wherever you are.

Specifications
LD Systems ANNY® 8 GN Portable battery-powered Bluetooth® PA loudspeaker with mixer,
Product type
Battery-powered PA speaker
Type
Powered
Color
Adventure Green
System output (RMS)
80 W
System output (Peak)
160 W
Max. SPL Average (Sine burst)
110 dB
Max. SPL Peak (Sine burst)
117 dB
Frequency response (-10dB)
53 - 20000 Hz
Crossover frequency
1800 Hz
Dispersion (H x V)
120° x 60 °
Width
249 mm
Depth
282 mm
Total Height
390 mm
Features
3-band-EQ, 6-channel mixer with system presets, Effects (reverb and delay), Priority/ducking mode, TWS, USB-C port für mobile device charging
low-mids:
Woofer dimensions
8 "
Woofer dimensions (mm)
203 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Woofer voice coil (inch)
1.5 "
Controls

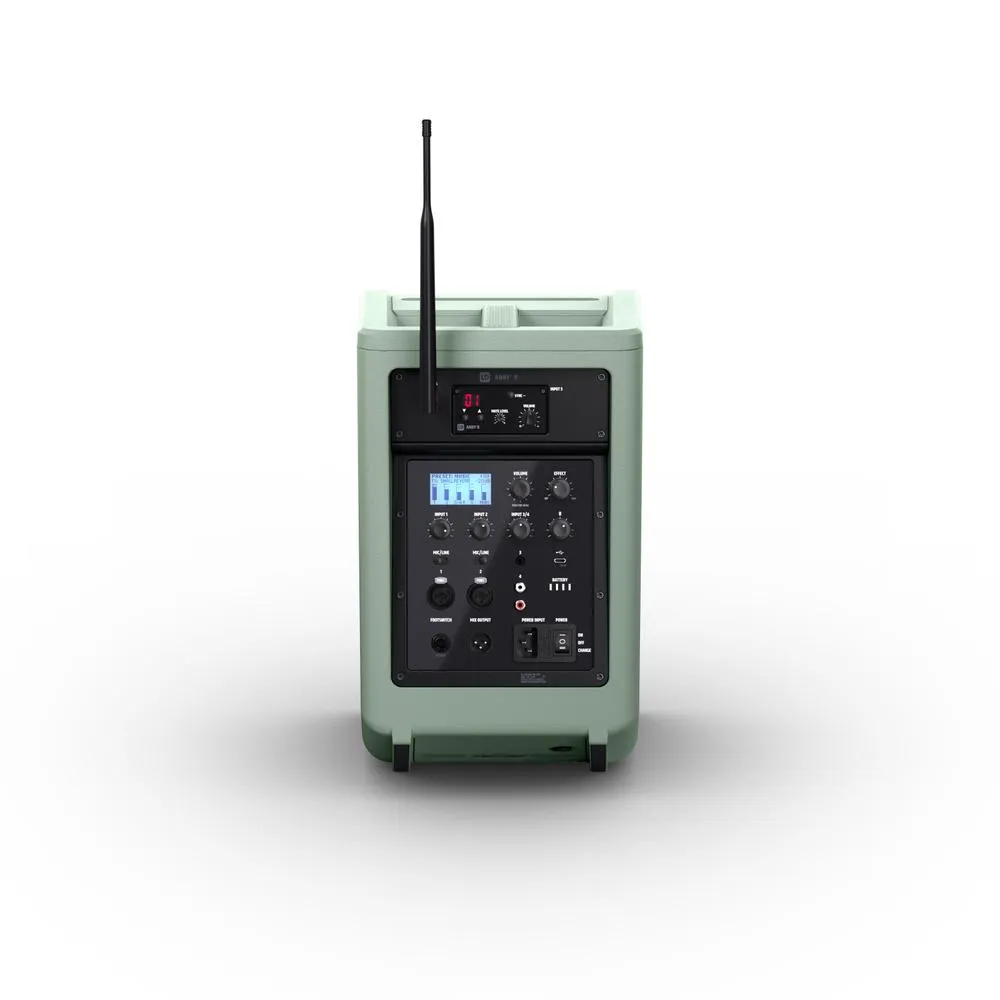

effect, Input 1 Mic/Line switch, Input 1 volume, Input 2 Mic/Line switch, Input 2 volume, Input 3+4 volume, Input 5+6 (Bluetooth) volume, Main volume / menu navigation, Power
Woofer voice coil (mm)
38 mm
Indicators
battery status, multifunction LC display
Cabinet construction
Bass Reflex
Housing material
ABS plastic
Weight
8,8 kg
HF:
Horn
Constant directivity
Tweeter dimensions
1 "
Tweeter dimensions (mm)
25 mm
Tweeter magnet
Ferrite
Tweeter brand
Custom-made
Tweeter voice coil
1 "
Tweeter voice coil (mm)
25 mm
Amplifier module (integrated):
Amplifier
Class D
Protection circuits
Short circuit, thermal overload
Ambient temperature (operating)
0°C - 40 °C
Relative Humidity
0 - 80% (non condensing)
Fuse
T2 AL 250V
Mains connector
IEC
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
150 W
Physical inputs
5
Physical input connectors
2 x 6.3 mm / XLR combo, 2 x RCA, 3.5 mm jack
Mix output
1
Mix output connector
XLR male
Bluetooth Standard
5.0
Bluetooth Audio Decoder
AAC, SBC
Rechargeable battery:
Rechargable batteries
14.8V / 5Ah
Battery technology
Li-Ion rechargeable battery
Indicator battery
4 - segment LED
Battery life music (MUSIC, full volume)
3.5 Hours
Battery life music (ECO, mid volume)
11 Hours
Charging time (80%, no signal)
3 hours
Charging time (full recharge)
5 hours

LD Systems WS 100 MH 1 Headset microphone, black
View items
Product type
Wireless Microphone System Accessories
Type
Headsets
Frequency response
100 Hz - 12 KHz
Directivity
Cardioid
Nominal impedance
680 Ohm(s)
Phantom power requierements
5 V
Microphone input
Mini-XLR (3-pin, female)
Cable length
1 m
Accessories (included)
Foam windscreen
Weight
0,049 kg

LD Systems ANNY® BP B5 Bodypack Transmitter for ANNY®
View items
Product type
Battery-powered PA speaker accessories
Type
Bodypack
Frequency response
45 Hz - 20 kHz
Channels
12
Inputs
Mini-XLR (3-pin)
Signal-to-noise ratio
100 dB
Rated HF output power
10 mW
Power supply
2 x AA battery
Operating time
>8 h (with alkaline batteries)
Width
64 mm
Weight
0,09 kg
Height
100 mm
Depth
21 mm
Controls
Gain (3-stage input sensitivity), Power On/Off, standby
Indicators
battery status LED (low), Power
Other features
incl. batteries, IR frequency synchronisation, standby, switchable gain

LD Systems ANNY® R B8 Receiver Module for ANNY
Product type
Battery-powered PA speaker accessories
Type
Receivers
Modulation Type
FM
Channels
12
Frequency response
50 Hz - 17 kHz
Controls
Mute Level (Squelch), Power / Volume, SYNC, Value Down, Value Up
Indicators
AF (audio signal), LED Display, RF (radio signal)
Connectors
Audio outputs, BNC-Antenna
Weight
0,08 kg
