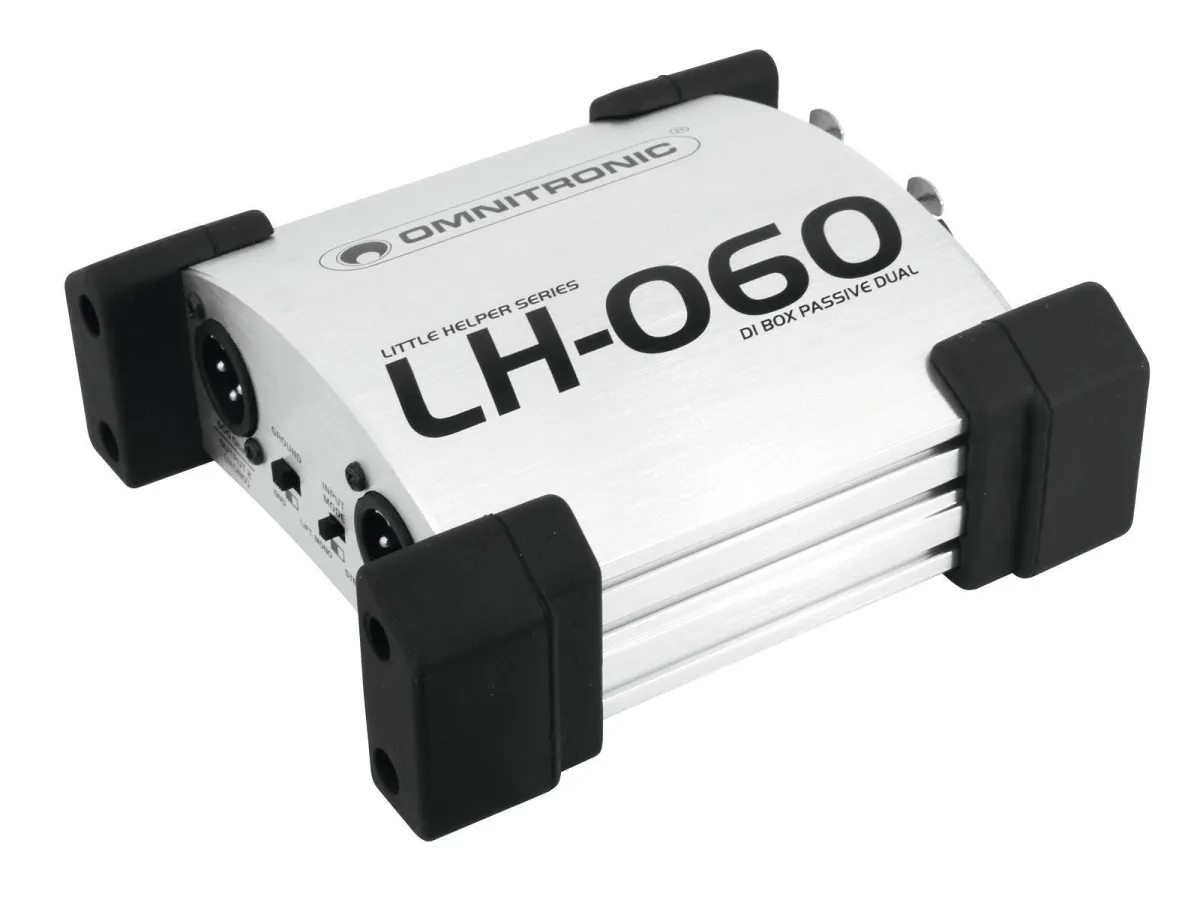

Omnitronic - LH-060 PRO Passive Dual DI Box

Artnr: IDS0093619
Tarneaeg: 10-30 tööpäeva.

Teave:

Passive 2-channel DI box/splitter, Silver

Passive 2-channel DI box with split mode
2 high-impedance signal inputs via combo connectors (XLR/6.3 mm jack)
2 low-impedance XLR outputs
Converts 2 separate unbalanced line inputs (e.g. instruments) into 2 balanced XLR outputs, for connecting a mixer
Switchable to split mode (input 2 routes the signal to both outputs)
Switchable input attenuation: 0 dB, -20 dB, -40 dB
Ground-lift switch eliminates signal interference and ground loop problems
Modern convex housing design with rubber corners for safe positioning
Stackable
Cables can be routed under the housing

Frequency range: 15 - 30000 Hz
Impedance: Input 50 kOhm
Output 600 Ohm
input attenuation: 0 dB, -20 dB, -40 dB; switchable
Connections: Input: 2 x via 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: 2 x line via 3-pin XLR
Max. level: Output: +6 dBu
Width: 15 cm
Height: 6 cm
Depth: 13 cm
Weight: 0.65 kg
