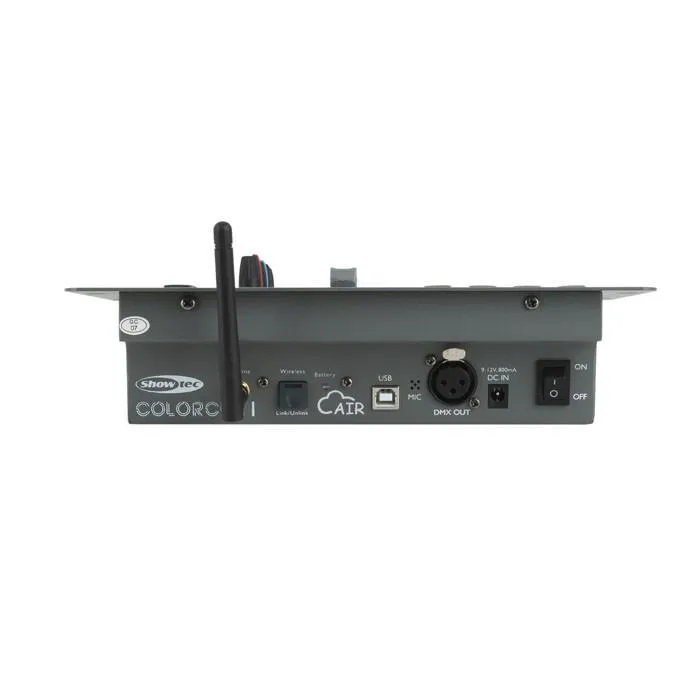

Showtec - ColorCue 1 Air

Artnr: IDS0121141
Tarneaeg: 2-7 tööpäeva.

Teave:

Intelligent single-fader LED DMX controller with wireless DMX
Internal battery for up to 12 hours of operation
Suitable for 3 to 6 colour LEDs
12 fixed and 12 user colours
12 fixed and 12 user chases with up to 99 steps

The Showtec ColorCue 1 Air is an intelligent single-fader LED DMX controller with 6 channels for wirelessly controlling the light output of LED fixtures with up to 6 colours (RGBWA-UV), suitable for any venue. Its 6 potentiometers enable you to quickly tune the lights to your desired colour, from 3-colour RGB to 6-colour RGBWA-UV. The ColorCue 1 Air enables you to create your own 12 preset colours and you can choose between 12 fixed colours. You can create up to 12 programs (chases) with each up to 99 steps for changing colours and effects in a loop. The chases can be controlled in Manual, Auto run or Sound-controlled mode. The wireless DMX capabilities and internal battery, good for up to 12 hours of operation, completely omit the need for running cables to the controller, which is ideal in a temporary setup!

Specifications
Wireless Mode
G3
Carrier Frequency
2,4 GHz
Gain (mW)
10 mW
Reaction Time
8 ms
Antenna Type
Omni
Antenna Radiation
360 x 360°
Battery
Battery Type
Lithium ion
Battery Voltage
3.7 V
Capacity
2.6 Ah
Runtime @Full
10 h
Runtime Average
12 h
Charging Time
6 h
Control and Programming
Control Mode
Built-in Program, Manual, Sound, Static Dimmer
DMX Channels
6
Protocols
DMX
Wireless
Wireless DMX
Buttons
25
Faders
1
Memories
1212
Electrical Specifications and Connections
Power Supply
9-12 VDC
Power Consumption
10 W
Power Connector in
Low Voltage DC plug
DMX Connector out
XLR 3P
Audio Triggers
1
Mechanical Specifications
Length (mm)
258 mm
Width (mm)
150 mm
Height (mm)
79 mm
Installation Depth (excl. connector)
79 mm
Weight
1.1 kg
Rack Units
3 U
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Gray
Product Properties
LED Indicators
Battery status, Operation mode, Output level
Thermal Specifications
Maximum Ambient Temperature
40 °C
Minimum Ambient Temperature
-5 °C
Minimum Operating Temperature
-5 °C
Included Items
Included Cables
None
Included Accessories
Adapter
