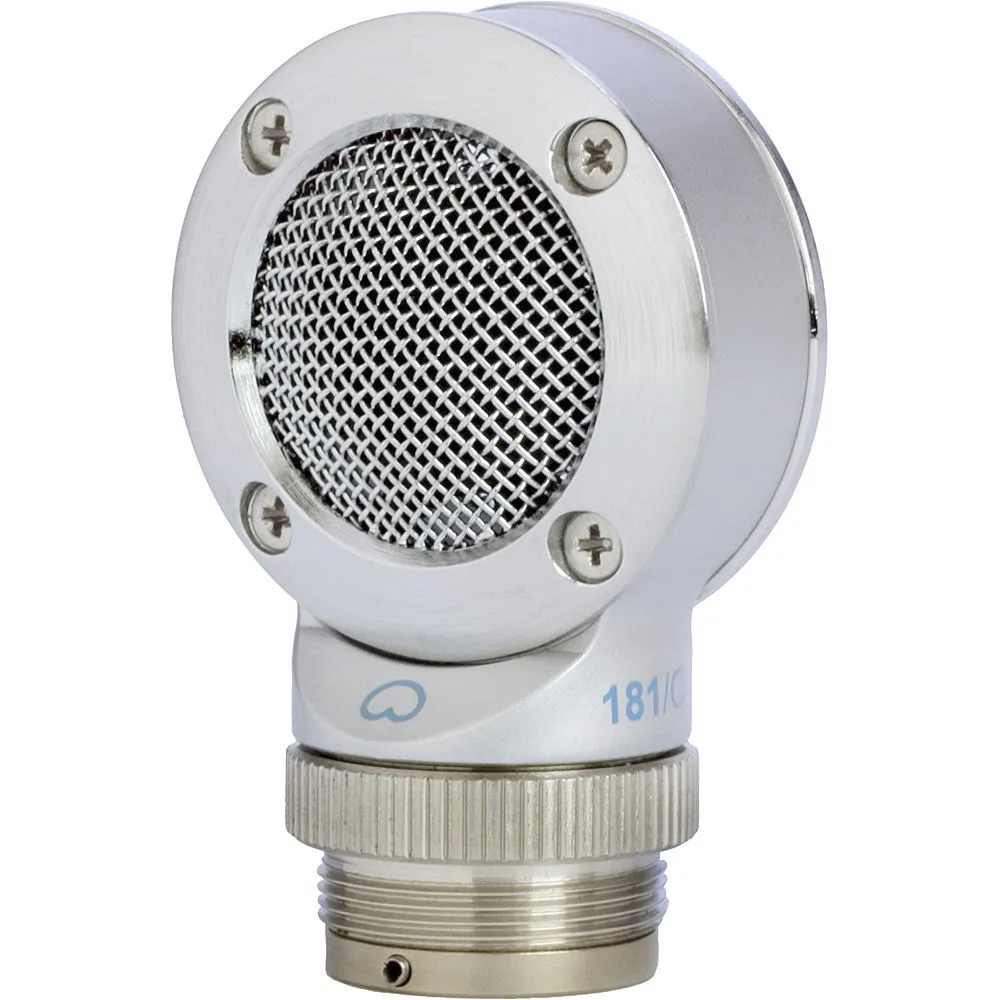

Shure - RPM181/C

Artnr: IDS0042219
Tarneaeg: 2-10 tööpäeva.

Teave:

Type Condenser
Frequency Response 20 to 20,000 Hz
Polar Pattern Bidirectional
Sensitivity -51.0 dBV/Pa (2.6 mV)
Output Impedance 110 ohms (at 1 kHz)
Signal to Noise Ratio 71.0 dB
Self Noise 23.0 dB SPL-A
Common Mode Rejection ?55 dB
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power Requirements 11-52 V DC[4] phantom power (IEC-61938)2.4 mA, maximum
Weight 5.1 oz (145 grams)
Maximum SPL
1000 Ohm Load 153.50 dB (1,000 ohm load)
2500 Ohm Load 156.0 dB SPL
Dynamic Range
1000 Ohm Load 130.5 dB
2500 Ohm Load 133.0 dB
Clipping Level
1000 Ohm Load 7.5 dBV
2500 Ohm Load 10.5 dBV
