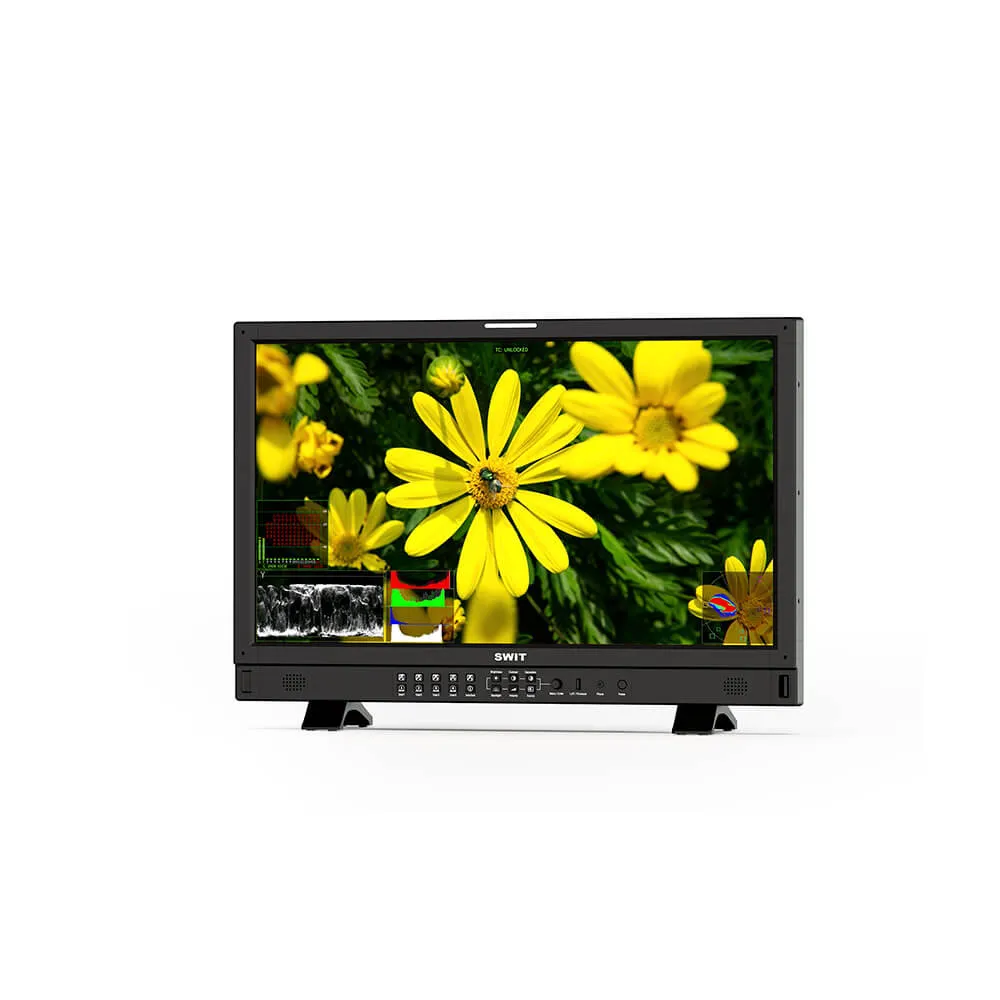

Swit - BM-U275HDR-8K 27" 8K High-Bright Monitor

Artnr: IDS0125853
Tarneaeg: Kaup on ajutiselt otsas. Kontakteeruge meiega tarneaja prognoosiks. »

Teave:

27-inch LCD Panel, 3840×2160 resolution
1000nits high bright LED backlight
HLG/PQ/S-log3 HDR, Payload ID auto setting
12GSDI 4-in 4-out, 8K input ready, HDMI2.0 input
12GSDI via SFP Fiber input (Optional)
ST2110 IP via SFP Fiber input (Optional)
SFP Fiber 12G input converted to 12GSDI out
3DLUT Auto Self-calibration without PC
Audio/Video 0 latency for lip-sync
Built-in Multi camera Delog LUTs
User 3DLUTs upload via USB
Waveform / Vector / Histogram
Focus assist / False color / Zebra
16-ch audio meters / Lissajous
IP webserver remote control
TSL UMD and text TALLY display
USB firmware upgrade
BM-U275HDR adopts a 27-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits high bright LED backlight, 1000:1 contrast, 97.2% DCI-P3 color gamut. The viewing angle is H178° / V178°.

12GSDI 4-in 4-out, supports:
Single link 4K; Quad link 4K and Quad link 8K
HDMI 2.0 (4K60P)
12GSDI via SFP Fiber (Optional)
ST2110 IP via SFP Fiber (Optional)
* The Quadlink 4K/8K supports both Quad mode and 2SI interleave mode;
* The SFP optical fiber adaptor is optional purchased.

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs.
You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.
